Insulation Shielding Tape Series

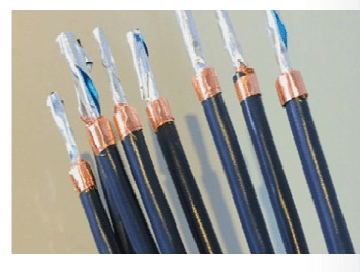

Copper Foil Tape
Copper foil tape (conductive / non-conductive adhesive) · 铜箔胶带(单/双导)
Technical parameters
| Item | Specification |
|---|---|
| Base material | Copper foil |
| Thickness | 0.05 – 0.15 mm |
| Adhesive system | Acrylic |
| Peel force | 8 – 12 N / 25 mm |
| Heat resistance | 120 °C |
Product characteristics
Purity higher than 99.95%. Its function is to eliminate electromagnetic (EMI) interference and isolate the human body from electromagnetic wave damage, avoiding unwanted voltage and current that would affect function.
It also works well for grounding electrostatic discharge. Strong adhesion and good conductivity.
Applications
All kinds of transformers, mobile phones, computers, PDAs, PDP and LCD monitors, laptops, copiers and other electronic products where electromagnetic shielding is required.
Insulation Shielding Tape Series

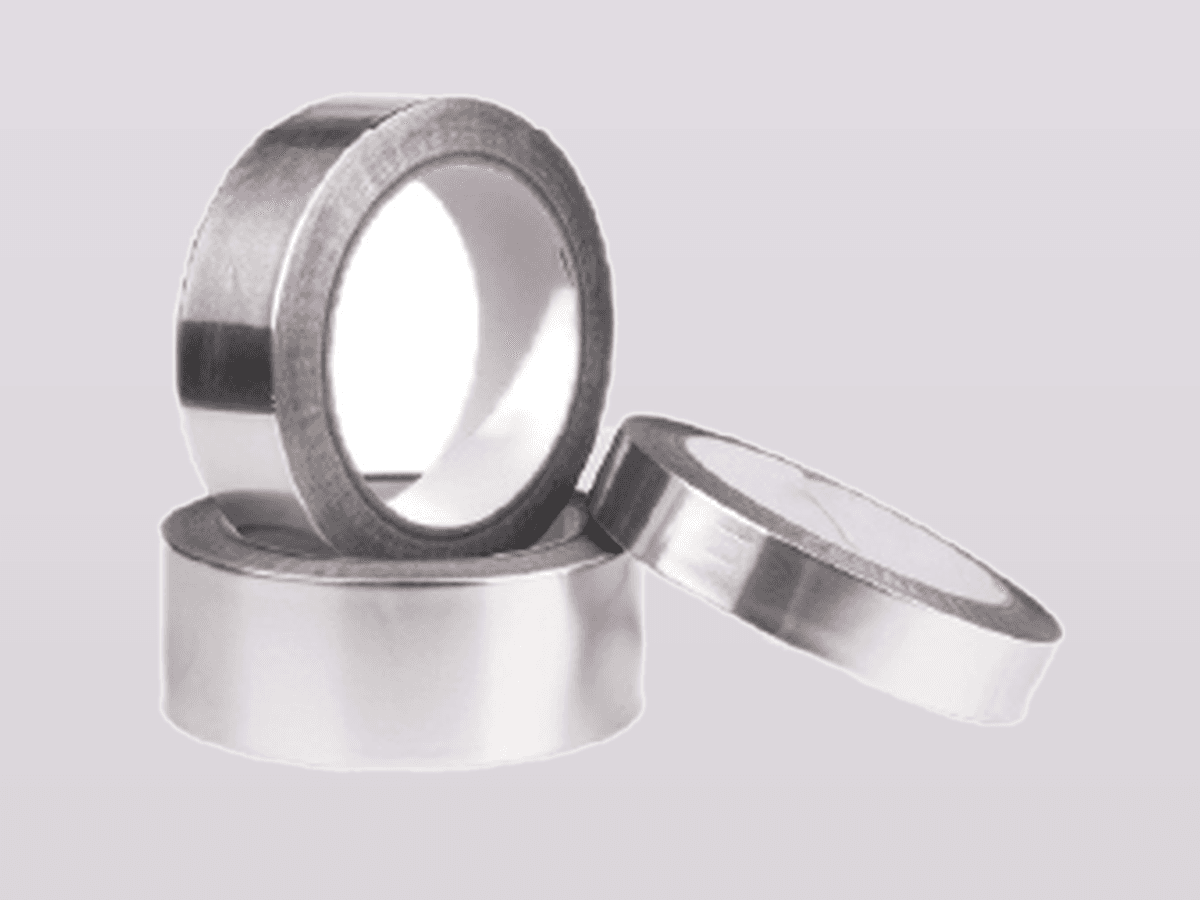

Aluminium Foil Tape
Aluminium foil tape · 铝箔胶带
- Base material
- Aluminium foil
- Thickness
- 0.04 – 0.15 mm
- Adhesive system
- Acrylic
Acetate Cloth Tape
Acetate cloth tape · 醋酸布胶带
- Base material
- Acetate cloth
- Thickness
- 0.12 / 0.2 mm
- Adhesive system
- Acrylic
Conductive Cloth Adhesive Tape
Conductive cloth adhesive tape · 导电布胶带
- Base material
- Conductive cloth
- Thickness
- 0.1 mm
- Adhesive system
- Acrylic
