High Temperature Resistance Tape Series

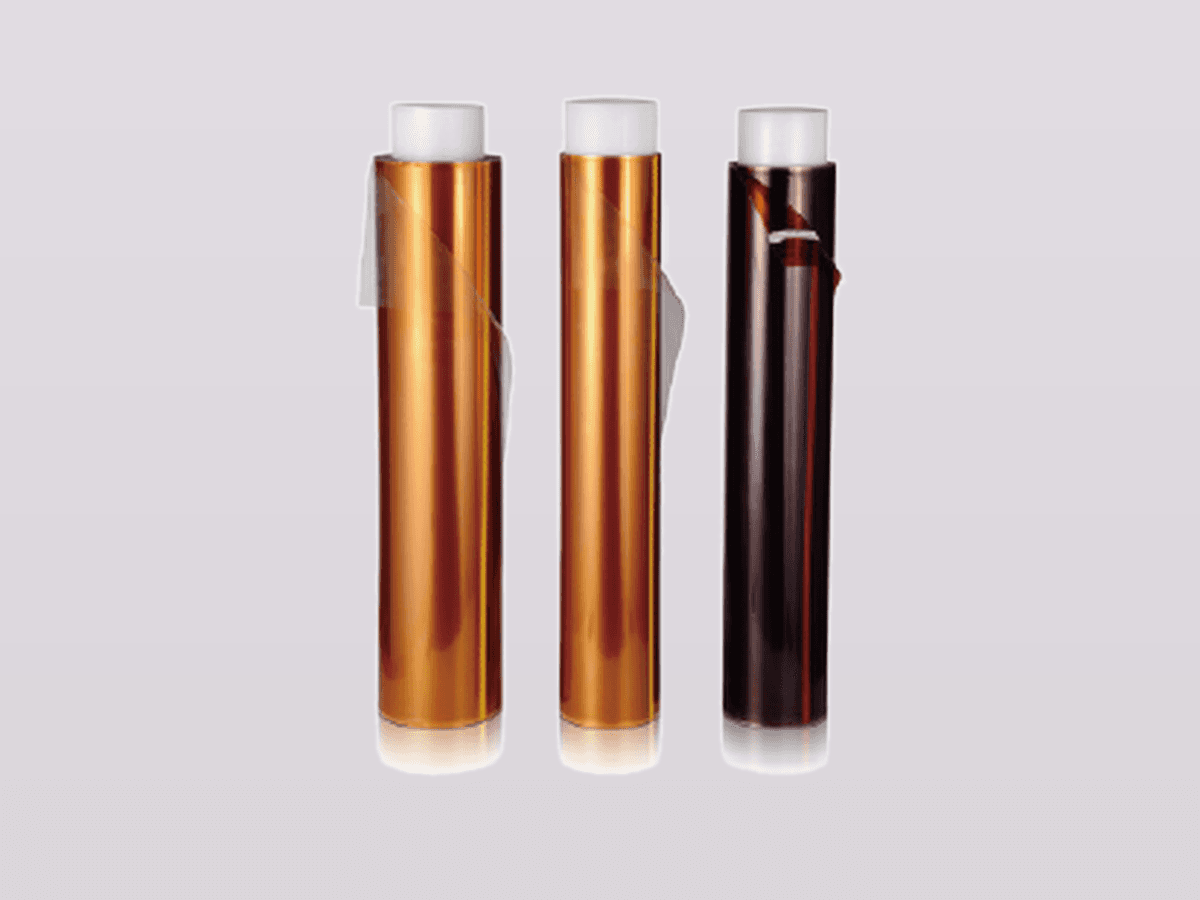

PI/PET Double-Sided High-Temperature Tape
PI/PET double-sided high temperature tape · PI/PET双面高温胶带
Technical parameters
| Item | Specification |
|---|---|
| Base material | PET / PI |
| Thickness | 0.1 / 0.15 / 0.2 mm / customisable |
| Adhesive system | Silicone |
| Peel force | 6 – 10 N / 25 mm |
| Heat resistance | 200 – 250 °C |
Product characteristics
Good high-temperature resistance, electrical insulation, chemical resistance, high adhesion, soft conformability, and tear-off without residual adhesive.
Applications
High-grade electronic insulating material and auxiliary fixing in high-temperature-resistant environments, such as flexible circuit board production and high-temperature lamination of electronic components.
Especially suitable for fixing flexible circuit boards to fixtures when they pass through reflow soldering.
High Temperature Resistance Tape Series
PI Gold Finger High-Temperature Tape
PI gold finger high temperature tape (Polyimide tape) · 聚酰亚胺胶带
- Base material
- PI
- Thickness
- 0.03 – 0.2 mm / customisable
- Adhesive system
- Silicone / Acrylic
PI Film (Polyimide Film)
PI Film (Polyimide Film) · 聚酰亚胺薄膜
- Base material
- PI
- Thickness
- 0.0125 – 0.15 mm
- Heat resistance
- 350 °C
PET (Polyester) High-Temperature Tape
PET (Polyester) High Temperature Resistant Tape · 聚酯高温胶带
- Thickness
- 0.05 – 0.15 mm (customisable)
- Width × Length
- Customisable
- Short-term heat resistance
- 200 °C
